Choose Your AquaForce Pump Model
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Ce produit contient des produits chimiques reconnus par l'État de Californie pour causer le cancer et des malformations congénitales ou d'autres problèmes de reproduction. Pour plus d'informations, visitez www.p65warnings.ca.gov

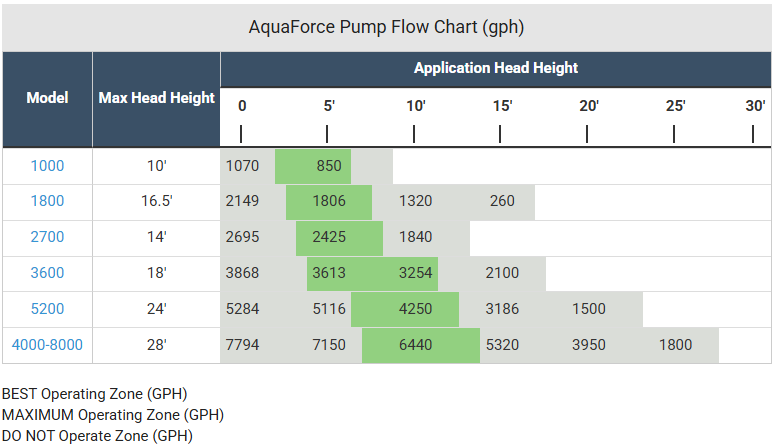

AquaForce Pond Pump Flow Chart (GPH)
Need Help Finding the Right Model Pond Pump? Calculate Your Pump Requirements
Pond Dimensions
Waterfall Width
Head Height
Pond Dimensions
Enter the general size of your pond. Measure the length, width, and average depth in feet. This helps calculate the total water volume.
Waterfall Width
Measure the width of your waterfall spillway in inches. We recommend 100 gallons per hour (GPH) per inch of waterfall width for optimal flow.
Head Height
Enter the vertical elevation from the pond surface to the top of the waterfall, pipe length, and diameter. These factors affect pump performance and head loss.
Calculation Method
The calculator determines pond volume, required waterfall flow, circulation needs, and accounts for head loss from elevation and pipe friction to recommend the proper pump size.
Stream Dimensions
Waterfall Width
Head Height
Stream Dimensions
Enter the length and width of your stream bed in feet. For pondless waterfalls, we calculate stream volume using a standard depth factor.
Waterfall Width
Measure the width of your waterfall spillway in inches. We recommend 100 gallons per hour (GPH) per inch of waterfall width for optimal flow.
Head Height
Enter the vertical elevation from the pond surface to the top of the waterfall, pipe length, and diameter. These factors affect pump performance and head loss.
Calculation Method
For pondless waterfalls, the calculator determines stream volume, waterfall flow requirements, and accounts for head loss to recommend the appropriate pump size for your feature.

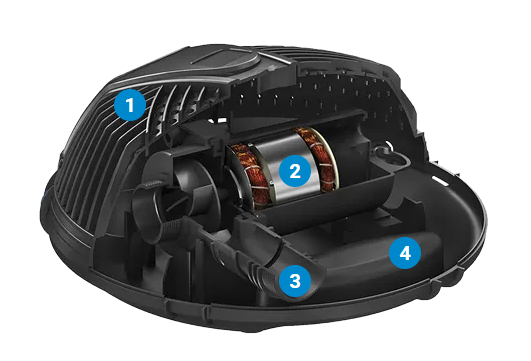

Features of AquaForce Pond Pumps
Protective Cage
Protective pump cage prevents large debris from clogging or damaging the pump, reducing maintenance.
Powerful and Efficient Motor
Asynchronous motor technology makes this pump more powerful and more efficient than traditional "mag-drive," or magnetically driven pond pumps.
Threaded Disconnect
The simple and secure threaded disconnect allows the pump to be easily removed from the pond for maintenance or winterization without removing hose clamps or plumbing assembly.
Stable Design
The wide, flat shape of the pump cage makes it stable and easy to place in the pond.
AquaForce Adjustable Flow Pond Pump Model

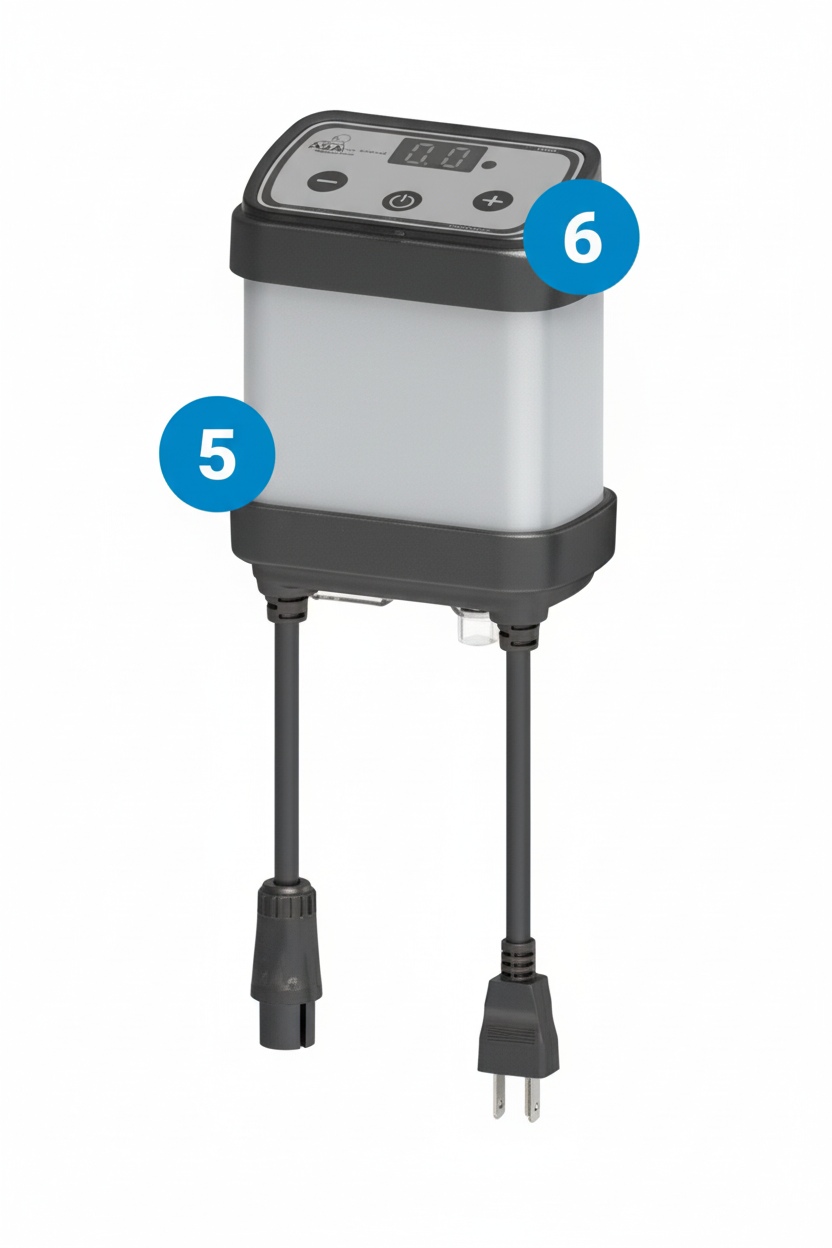

Smart Pump Receiver
Integrated Control Panel
Compare AquaForce Solids-Handling and AquaForce Adjustable Flow Solids-Handling Pond Pumps
| Specification | AquaForce 1000 | AquaForce 1800 | AquaForce 2700 | AquaForce 3600 | AquaForce 5200 | AquaForce 4000-8000 |
|---|---|---|---|---|---|---|
| Item Number | 91011 | 91112 | 91012 | 91113 | 91013 | 91104 |
| Maximum Flow Rate (GPH) | 1070 | 2149 | 2695 | 3868 | 5284 | 7793 |
| Adjustable Flow | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ |
| Maximum Head Height | 10 feet | 16.5 feet | 14 feet | 18 feet | 24 feet | 28 feet |
| Motor Type | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous |
| Wattage | 55 | 160 | 147 | 215 | 360 | 500 to 660 |
| Amperage | 0.51 | 1.33 | 1.25 | 1.8 | 3 | 5.5 |
| Power Cord Length | 25 feet | 25 feet | 25 feet | 25 feet | 25 feet | 20 feet |
| Pump Discharge Diameter | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT |
| Ideal Pipe Diameter | 1 - 1.5 inch | 1 - 1.5 inch | 1.5 - 2 inch | 1.5 - 2 inch | 2 inch | 2 or 3 inch |
| Pump Dimensions | 14 x 14 x 6.5 inches(LxWxH) | 14 x 14 x 6.5 inches(LxWxH) | 14 x 14 x 6.5 inches(LxWxH) | 14 x 14 x 6.5 inches(LxWxH) | 14 x 14 x 6.5 inches(LxWxH) | 14 x 14 x 6.5 inches(LxWxH) |
| App/WiFi Connected | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Warranty (Limited) | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
AquaForce Pond Pumps Videos
