Choose Your AquaSurge Pond Pump Model
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Ce produit contient des produits chimiques reconnus par l'État de Californie pour causer le cancer et des malformations congénitales ou d'autres problèmes de reproduction. Pour plus d'informations, visitez www.p65warnings.ca.gov

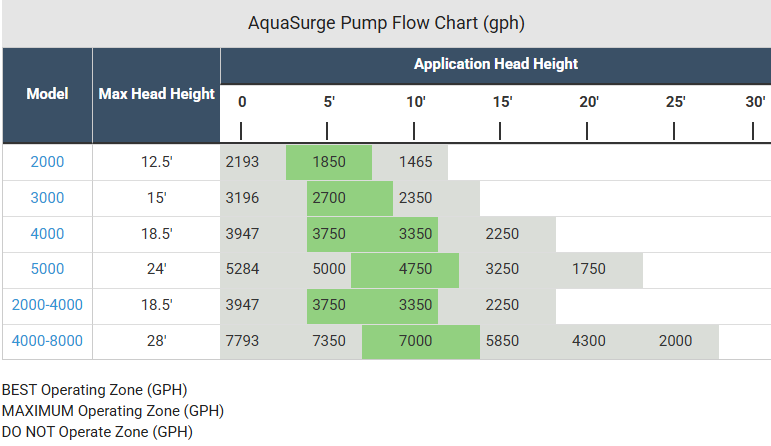

SLD Pond Pump Flow Chart
Need Help Finding the Right Model Pond Pump? Calculate Your Pump Requirements
Pond Dimensions
Waterfall Width
Head Height
Pond Dimensions
Enter the general size of your pond. Measure the length, width, and average depth in feet. This helps calculate the total water volume.
Waterfall Width
Measure the width of your waterfall spillway in inches. We recommend 100 gallons per hour (GPH) per inch of waterfall width for optimal flow.
Head Height
Enter the vertical elevation from the pond surface to the top of the waterfall, pipe length, and diameter. These factors affect pump performance and head loss.
Calculation Method
The calculator determines pond volume, required waterfall flow, circulation needs, and accounts for head loss from elevation and pipe friction to recommend the proper pump size.
Stream Dimensions
Waterfall Width
Head Height
Stream Dimensions
Enter the length and width of your stream bed in feet. For pondless waterfalls, we calculate stream volume using a standard depth factor.
Waterfall Width
Measure the width of your waterfall spillway in inches. We recommend 100 gallons per hour (GPH) per inch of waterfall width for optimal flow.
Head Height
Enter the vertical elevation from the pond surface to the top of the waterfall, pipe length, and diameter. These factors affect pump performance and head loss.
Calculation Method
For pondless waterfalls, the calculator determines stream volume, waterfall flow requirements, and accounts for head loss to recommend the appropriate pump size for your feature.

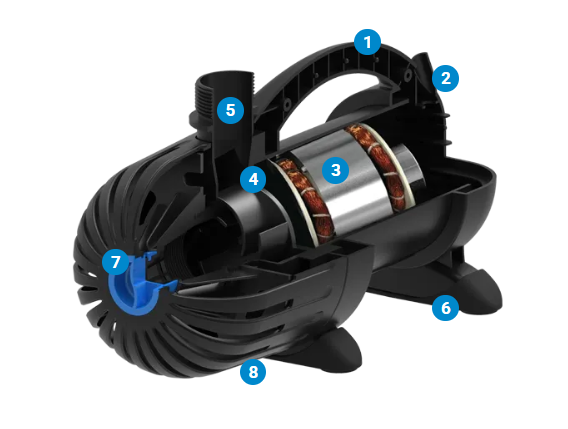

Features of AquaSurge Pond Pumps
Compact Size
Small compact size makes the pump ideal for pond skimmers.
Cord Protection
Built-in cord strain relief protects the cord from being damaged.
Powerful and Efficient Motor
Asynchronous motor delivers more power and efficiency than standard magnetic-drive pumps.
Unique Cooling
Ceramic shaft with cooling port prevents overheating.
Threaded Disconnect
Threaded disconnect allows easy removal for winterization or maintenance.
Quiet Operation
Integrated rubber feet reduce vibration and noise.
Locking Knob
Allows quick and secure cage removal.
Horizontal or Vertical Placement
Can operate horizontally or vertically using the included stand.
Included Accessories
Pump Stand
The included pump stand allows for vertical positioning within a skimmer or Pondless Waterfall Vault.

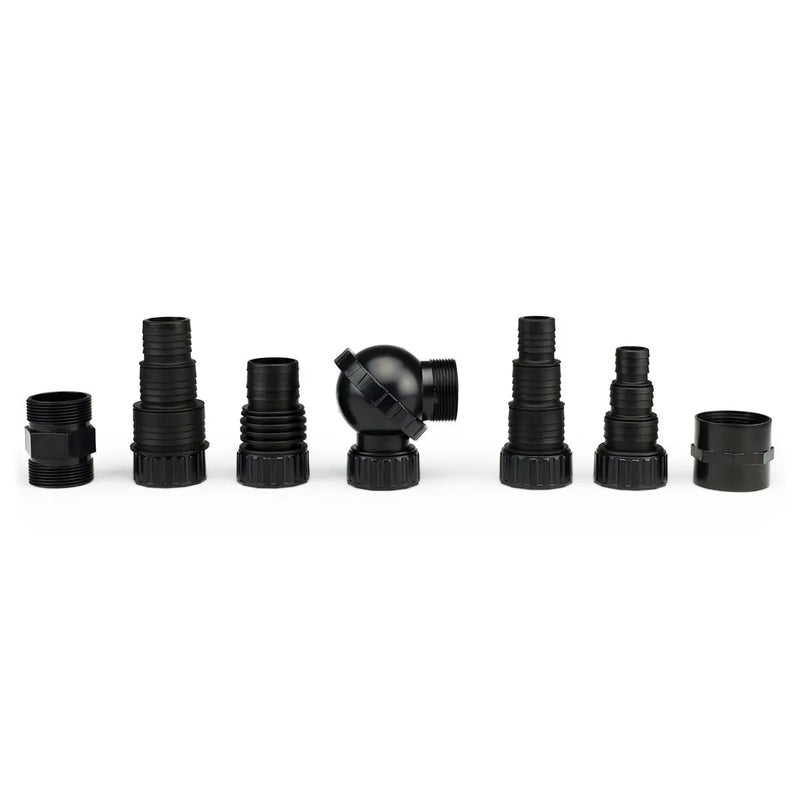

AquaSurge Pump Fittings
Multiple fittings are included to simplify plumbing connections.
- 1.5" Male Coupler
- 1.25" Multi-Hose Adapter
- 1.5" Multi-Hose Adapter
- 2" Multi-Hose Adapter
Compare AquaSurge Pond Pump Models
| Specifications | 3 years | AquaSurge 3000 | AquaSurge 4000 | AquaSurge 5000 | AquaSurge Adjustable Flow 2000–4000 | AquaSurge Adjustable Flow 4000–8000 |
|---|---|---|---|---|---|---|
| Item Number | 91017 | 91018 | 91019 | 91020 | 45009 | 45010 |
| Maximum Flow Rate | 2193 GPH / 8000 LPH | 3196 GPH / 12000 LPH | 91019 | 5284 GPH / 20000 LPH | 3947 GPH / 14500 LPH | 7793 GPH / 29500 LPH |
| Adjustable Flow | ||||||
| Maximum Head Height | 12.5 feet | 15 feet | 18.5 feet | 24 feet | 18.5 feet | Asynchronous |
| Motor Type | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | |
| Wattage | 160 | 165 | 215 | 360 | 180 to 215 | 500 to 660 |
| Amperage | 1.3 | 1.4 | 1.82 | 3 | 1.82 | 5.5 |
| Power Cord Length | 20 feet | 20 feet | 20 feet | 20 feet | 20 feet | 20 feet |
| Pump Discharge Diameter | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 2 or 3 inch |
| Ideal Pipe Diameter | 1.5 or 2 inch | 1.5 or 2 inch | 1.5 or 2 inch | 2 inch | 1.5 or 2 inch | 2 or 3 inch |
| Pump Dimensions (LxWxH) | 12 x 5.5 x 7 inches(LxWxH) | 12 x 5.5 x 7 inches(LxWxH) | 14 x 6 x 7.5 inches(LxWxH) | 14 x 6 x 7.5 inches(LxWxH) | 14 x 6 x 7.5 inches(LxWxH) | 14 x 6 x 7.5 inches(LxWxH) |
| App/WiFi Connected | ||||||
| Warranty (Limited) | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
