Choose Your EcoWave Pond Pump Model
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Ce produit contient des produits chimiques reconnus par l'État de Californie pour causer le cancer et des malformations congénitales ou d'autres problèmes de reproduction. Pour plus d'informations, visitez www.p65warnings.ca.gov

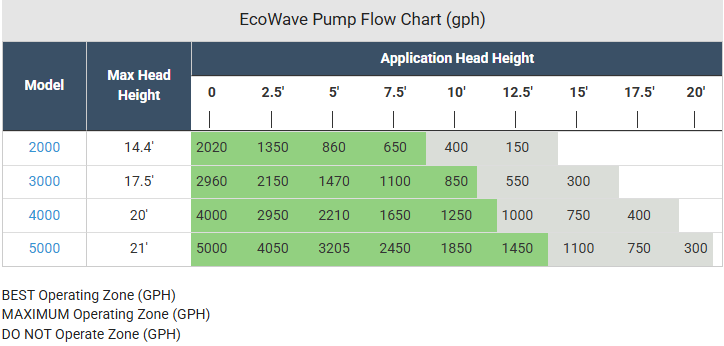

SLD Pond Pump Flow Chart
Need Help Finding the Right Model Pond Pump? Calculate Your Pump Requirements
Pond Dimensions
Waterfall Width
Head Height
Pond Dimensions
Enter the general size of your pond. Measure the length, width, and average depth in feet. This helps calculate the total water volume.
Waterfall Width
Measure the width of your waterfall spillway in inches. We recommend 100 gallons per hour (GPH) per inch of waterfall width for optimal flow.
Head Height
Enter the vertical elevation from the pond surface to the top of the waterfall, pipe length, and diameter. These factors affect pump performance and head loss.
Calculation Method
The calculator determines pond volume, required waterfall flow, circulation needs, and accounts for head loss from elevation and pipe friction to recommend the proper pump size.
Stream Dimensions
Waterfall Width
Head Height
Stream Dimensions
Enter the length and width of your stream bed in feet. For pondless waterfalls, we calculate stream volume using a standard depth factor.
Waterfall Width
Measure the width of your waterfall spillway in inches. We recommend 100 gallons per hour (GPH) per inch of waterfall width for optimal flow.
Head Height
Enter the vertical elevation from the pond surface to the top of the waterfall, pipe length, and diameter. These factors affect pump performance and head loss.
Calculation Method
For pondless waterfalls, the calculator determines stream volume, waterfall flow requirements, and accounts for head loss to recommend the appropriate pump size for your feature.

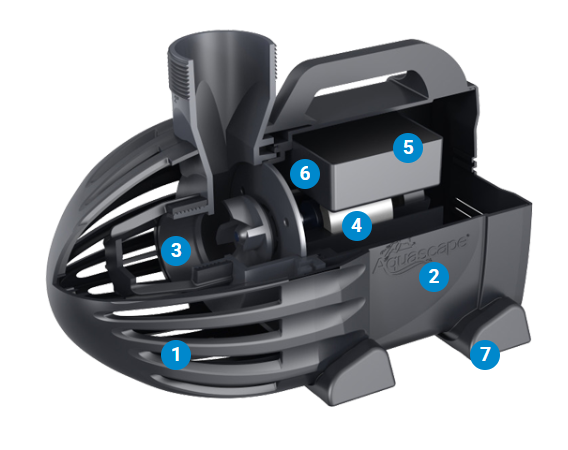

Features of EcoWave Pond Pumps
Protective Filter
Reduces maintenance and prevents pump damage.
Durable Housing
Thermoplastic housing will not corrode or rust.
High-Flow
Vortex impeller maximizes water flow.
Smart Mag-drive Motor
Provides significant electrical cost savings.
Energy Efficient
Internal PC board delivers high flow with unmatched efficiency.
Overload Sensor
Built-in sensor prevents pump damage.
Quiet Operation
Wide flat base with rubber feet keeps the pump stable and reduces vibration.

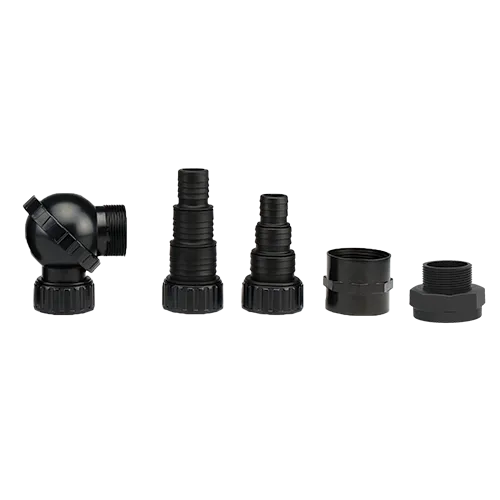

Included Fittings
- 1 x 1.5" Rotational Ball Output
- 2 x 1", 1.25", 1.5" Multi-Hose Fittings
- 1 x 1.5" Female Coupling
- 1 x 2" FPT x 1.5" MPT
Compare EcoWave Pond Pump Models
Need help selecting the proper pump size?
| Features | EcoWave 2000 | EcoWave 3000 | EcoWave 4000 | EcoWave 5000 |
|---|---|---|---|---|
| Item Number | 91131 | 91132 | 91133 | 91134 |
| Maximum Flow Rate (GPH) | 2,020 | 2,960 | 4,000 | 5,000 |
| Maximum Head Height | 14.4 ft | 17.5 ft | 20 ft | 21 ft |
| Motor Type | Mag-drive | Mag-drive | Mag-drive | Mag-drive |
| Wattage | 65 | 90 | 130 | 150 |
| Amperage | 0.54 | 0.75 | 1.08 | 1.25 |
| Power Cord Length | 20 ft | 20 ft | 20 ft | 20 ft |
| Pump Discharge Diameter | 2" MPT | 2" MPT | 2" MPT | 2" MPT |
| Ideal Pipe Diameter | 1.5"–2" | 1.5"–2" | 1.5"–2" | 2" |
| Pump Dimensions (LxWxH) | 11 x 5.75 x 7.5 inches | 11 x 5.75 x 7.5 inches | 11 x 5.75 x 7.5 inches | 11 x 5.75 x 7.5 inches |
| Warranty | 3 years | 3 years | 3 years | 3 years |
SLD Pond Pump Videos
