Choose Your PL and PN Solids-Handling Pond Pump Model
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Ce produit contient des produits chimiques reconnus par l'État de Californie pour causer le cancer et des malformations congénitales ou d'autres problèmes de reproduction. Pour plus d'informations, visitez www.p65warnings.ca.gov

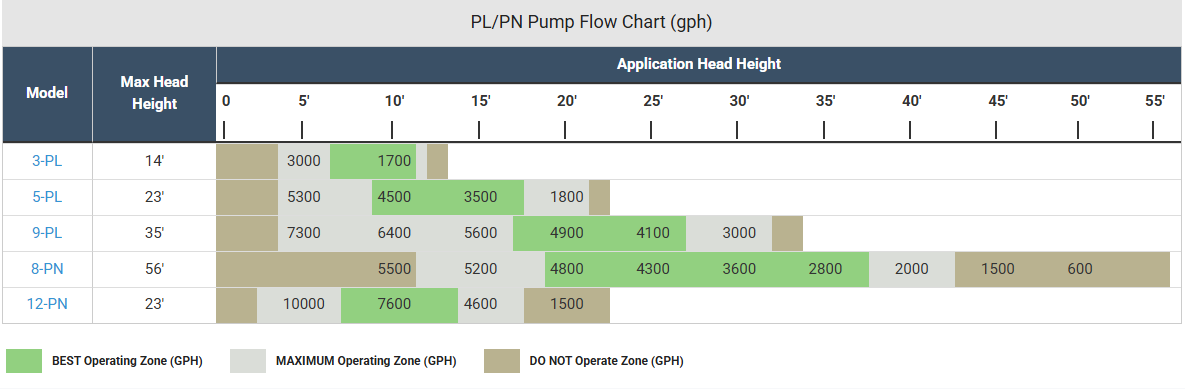

Aquascape PL & PN Series Pump Flow Chart (GPH)
Need Help Finding the Right Model Pond Pump? Calculate Your Pump Requirements
Pond Dimensions
Waterfall Width
Head Height
Pond Dimensions
Enter the general size of your pond. Measure the length, width, and average depth in feet. This helps calculate the total water volume.
Waterfall Width
Measure the width of your waterfall spillway in inches. We recommend 100 gallons per hour (GPH) per inch of waterfall width for optimal flow.
Head Height
Enter the vertical elevation from the pond surface to the top of the waterfall, pipe length, and diameter. These factors affect pump performance and head loss.
Calculation Method
The calculator determines pond volume, required waterfall flow, circulation needs, and accounts for head loss from elevation and pipe friction to recommend the proper pump size.
Stream Dimensions
Waterfall Width
Head Height
Stream Dimensions
Enter the length and width of your stream bed in feet. For pondless waterfalls, we calculate stream volume using a standard depth factor.
Waterfall Width
Measure the width of your waterfall spillway in inches. We recommend 100 gallons per hour (GPH) per inch of waterfall width for optimal flow.
Head Height
Enter the vertical elevation from the pond surface to the top of the waterfall, pipe length, and diameter. These factors affect pump performance and head loss.
Calculation Method
For pondless waterfalls, the calculator determines stream volume, waterfall flow requirements, and accounts for head loss to recommend the appropriate pump size for your feature.

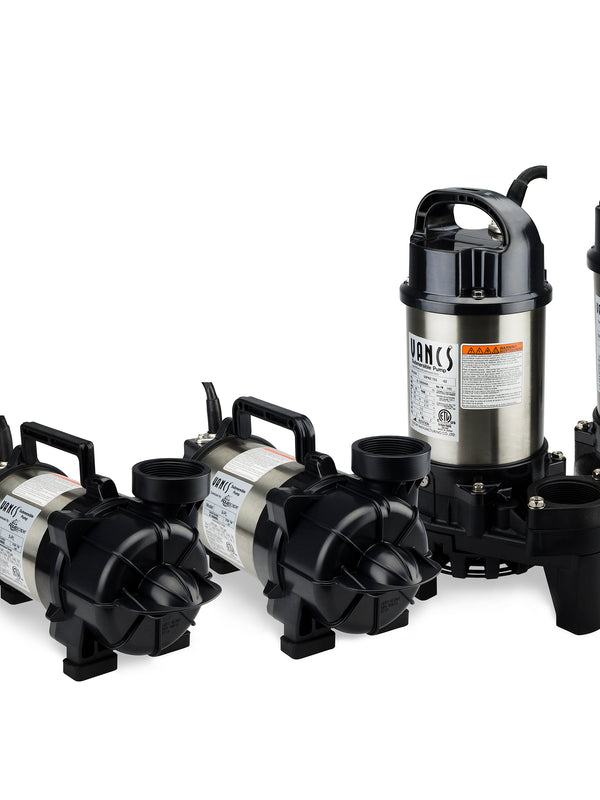

Features of PL and PN Pond Pumps
Aquascape PL and PN series pumps are solids-handling pond pumps for ponds, Pondless® Waterfalls, and other water feature applications. Known for durability, performance, and value, each is constructed from stainless steel and composite resin for strength and corrosion resistance. Learn the many features and benefits of Aquascape PL and PN Solids-Handling Pond Pumps.

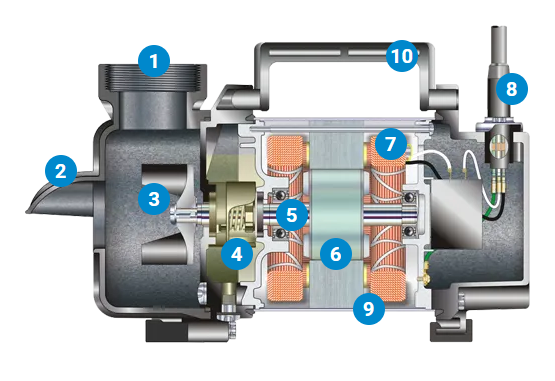

PL Series Pumps
Threaded Output
2" threaded output maximizes performance and flow rates.
Shielded Intake
Prevents air from entering the pump when used in shallow water applications.
Solids Handling
Semi-vortex handling reduces clogging and maintenance.
Unmatched Dependability
Double mechanical silicone carbide seals and oil lifter ensure exceptional reliability.
Quiet Operation
Permanently lubricated, 60,000-hour bearings deliver quiet, reliable operation.
High Efficiency
Continuous-duty motor runs at lower temperatures to extend pump life.
Overload Protection
Built-in thermal overload protection prevents overheating.
Reinforced Power Cord
Anti-wicking, water-tight design prevents electrical issues and increases durability.
Stainless Steel
Stainless steel housing with composite components for enhanced strength and corrosion resistance.
Integrated Handle
Handle design makes pump removal from tight spaces easier.

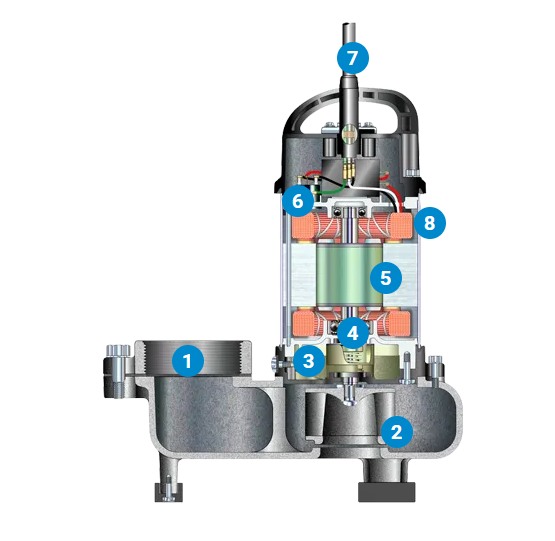

PN Series Pumps
Threaded Output
2" (8PN) or 3" (12PN) threaded output maximizes performance and flow rates.
High Volume Flow
Channel impeller and specially designed volute allow for efficient, high-volume water flow.
Unmatched Dependability
Double mechanical silicone carbide seals and oil lifter provide unmatched dependability.
Quiet Operation
Permanently lubricated, 60,000-hour life bearings provide reliable and quiet pump operation.
High Efficiency
High-efficiency, continuous-duty motor operates at lower temperatures, extending pump life.
Overload Protection
Built-in thermal overload protection prevents pump from overheating.
Reinforced Power Cord
Anti-wicking, water-tight, reinforced design improves durability and prevents electrical shorting.
Stainless Steel
Stainless steel housing combined with composite resin parts delivers maximum strength and durability.
Compare Aquascape PL and PN Solids-Handling Pond Pumps
| Specification | 3PL | 5PL | 9PL | 8PN | 12PN |
|---|---|---|---|---|---|
| Item Number | 20001 | 29976 | 29977 | 29495 | 30391 |
| Maximum Flow Rate (GPH) | 3,000 | 5,300 | 7,300 | 5,548 | 10,000 |
| Maximum Head Height | 14 ft | 5,300 | 35 feet | 56 feet | Direct Drive |
| Motor Type | Direct Drive | Direct Drive | Direct Drive | 56 feet | Direct Drive |
| Wattage | 330 | 620 | 1000 | 1000 | 900 |
| Amperage | 3.2 | 5.6 | 8.6 | 9.1 | 9.1 |
| Power Cord Length | 20 feet | 20 feet | 20 feet | 20 feet | 20 feet |
| Pump Discharge Diameter | 2 inch | 2 inch | 2 inch | 2 inch | 3 inch |
| Ideal Pipe Diameter | 1.5 or 2 inch | 2 or 3 inch | 2 or 3 inch | 2 or 3 inch | 3 inch |
| Pump Dimensions (LxWxH) | 11.7 x 5.6 x 7.1 inches (LxWxH) | 13.2 x 5.9 x 7.3 inches (LxWxH) | 14 x 5.9 x 7.3 inches (LxWxH) | 9.3 x 6.4 x 15 inches (LxWxH) | 11.7 x 7.7 x 15.1 inches (LxWxH) |
| Warranty (Limited) | 2 years | 2 years | 2 years | 2 years | 2 years |
